Stainless Steel Wire Reinforced 4 inch PVC Flexible Hose Pipe Click to view original

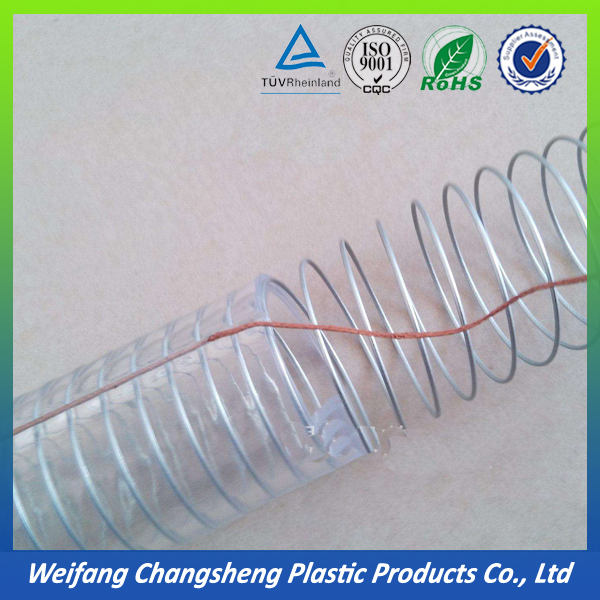

Stainless Steel Wire Reinforced 4 inch PVC Flexible Hose Pipe

Stainless Steel Wire Reinforced 4 inch PVC Flexible Hose Pipe

The PVC steel wire hose, with its steel wire reinforcement coil, is specially suited for applications where resistance to kinking is of primary importance. A proprietary construction technique employed during the manufacture permits full vacuum capabilities (29.9 in./Hg.) for all sizes without hose collapse. Constructed of clear, corrosion-resistant PVC, the hose can be used to transport various chemicals in areas with tight turns and sharp bends.
  • *Brand:Changsheng
  • *Materials:pvc
  • *MOQ:3000kg
  • *Main market:Asia, America, Europe, Australia, Africa
  • *Price:If you want to know the price,inquire now
  • *Package:in rolls
  • *Original Place:Weifang, China
++86 536 8191089
Print Product Summary

Specification

Features:

1. This hose is reinforced by spiral steel wire, which ensure the hose can resistant high pressure and has small bending radius.
2. It has good adaptability to hard weather conditions and vacuum pressure.
3. Made with high quality pvc resin, anti-abrasion and long service life.

Temperature range: -10℃ to +70℃

Application:

The hose is widely used for suction and discharge of water,oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines, the hose used for foodstuffs is made of special material. It is non-toxic, light, without odor and transparent.

The hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods. We can also insert the cooper wire into hose. This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.
Specification of PVC Steel Wire Reinforced Hose

Size

(inch)

I.D.

(mm)

O.D.

(mm)

W.P.

(bar)

B.P.

(bar)

Weight

(kg/meter)

1/2 12 18 8 24 0.23
5/8 16 21 7 21 0.25
3/4 19 25 7 21 0.35
1 25 31 6 18 0.45
1-1/4 32 38 6 18 0.70
1-1/2 38 45 6 18 0.80
2 50 57 6 18 1.10
2-1/2 62 70 5 15 1.40
3 75 83 5 15 1.80
4 102 111 4 12 2.80
5 127 137 4 12 5.00
6 150 162 4 12 6.00

    Weifang Changsheng Plastic Co., Ltd is a most competitive and comprehensive enterprise in China which is engaged in producing pvc hose, including Stainless Steel Wire Braiding Flexible Hose, fiber reinforced hose, single layer of transparent tube, special high-pressure hose, garden hose, PVC lay flat hose etc, its six series, dozen kinds of products, hundreds of specifications of PVC hose production, equipment manufacturing, product research and development.
