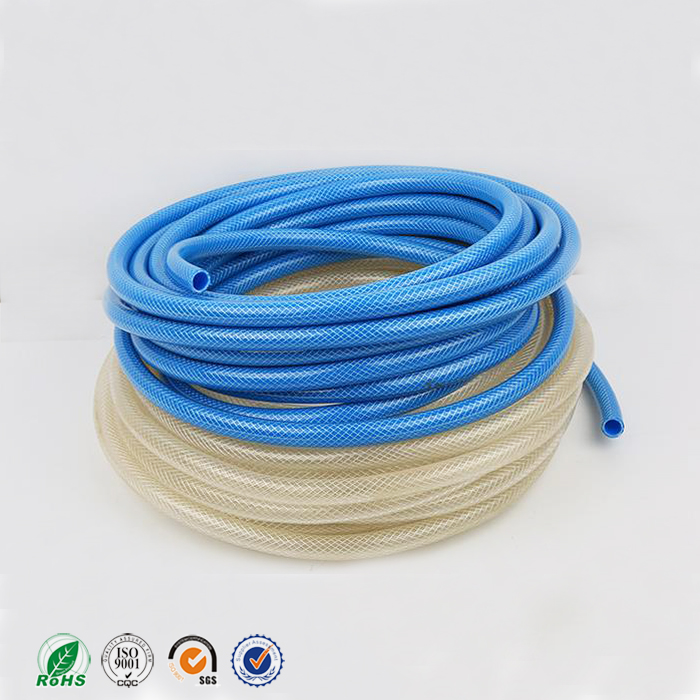

1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe

1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe
1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe
1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe
1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe
1/4 inch High Quality Food Grade PVC Fiber Reinforced Flexible Hose Pipe
Brand
Changsheng
Materials
pvc resin, polyester
MOQ
10000 meters
Main market
Global
Price
If you want to know the price,inquire now
Package
100m/roll
Original Place
China

Feature:

    The hose is made of PVC( polyvinyl chloride) and reinforced with polyester fiber. It is featured with extra flexibility and high pressure resistant. The extra flexibility makes it easier to bend into place and permits tighter compression of crimp fittings for a secure fit. Tubing is made with Food-Grade materials and is excellent for use with weak acids weak bases and salt solutions.



Working Temperature: -5~65

Application: It is widely used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family.



Specification of PVC Braided Hose

Diameter

(inch)

I.D.

(mm)

O.D.

(mm)

W.P.

(bar)

B.P.

(bar)

Length

(m)

Weight

(kg/roll)

1/4

6

9

10

30

100

4.8

5/16

8

12

9

27

    100

8.5

3/8

9

13

8

24

100

9.3

10

14

8

24

100

10.2

1/2

12

16

8

24

50

5.9

13

17

7

21

     50

6.4

5/8

15

20

6

18

50

9.3

16

22

6

18

50

12.1

3/4

19

23

5

15

50

8.9

20

25

5

15

50

11.9

1

25

30

5

15

50

14.6

31

5

15

50

17.8

1-1/4

32

39

5

15

50

26.3

1-1/2

38

46

5

15

50

35.6

2

50

60

4

12

50

58.3

62

4

12

50

71.3

2-1/2

64

78

4

12

50

105.4

Warning:

  • Not intended for medical or medical device use.
  • Not recommended for vacuum applications.
